Machine Learning — Singular Value Decomposition (SVD) & Principal Component Analysis (PCA)

Image for post
Image for post
Photo by Sheldon Nunes

In machine learning (ML), some of the most important linear algebra concepts are the singular value decomposition (SVD) and principal component analysis (PCA). With all the raw data collected, how can we discover structures? For example, with the interest rates of the last 6 days, can we understand its composition to spot trends?

Image for post
Image for post

This becomes even harder for high-dimensional raw data. It is like finding a needle in a haystack. SVD allows us to extract and untangle information. In this article, we will detail SVD and PCA. We assume you have basic linear algebra knowledge including rank and eigenvectors. If you experience difficulties in reading this article, I will suggest refreshing those concepts first. At the end of the article, we will answer some questions in the interest rate example above. This article also contains optional sections. Feel free to skip it according to your interest level.

Misconceptions (optional for beginners)

I realize a few common questions that non-beginners may ask. Let me address the elephant in the room first. Is PCA dimension reduction? PCA reduces dimension but it is far more than that. I like the Wiki description (but if you don’t know PCA, this is just gibberish):

Principal component analysis (PCA) is a statistical procedure that uses an orthogonal transformation to convert a set of observations of possibly correlated variables (entities each of which takes on various numerical values) into a set of values of linearly uncorrelated variables called principal components.

From a simplified perspective, PCA transforms data linearly into new properties that are not correlated with each other. For ML, positioning PCA as feature extraction may allow us to explore its potential better than dimension reduction.

What is the difference between SVD and PCA? SVD gives you the whole nine-yard of diagonalizing a matrix into special matrices that are easy to manipulate and to analyze. It lay down the foundation to untangle data into independent components. PCA skips less significant components. Obviously, we can use SVD to find PCA by truncating the less important basis vectors in the original SVD matrix.

Matrix diagonalization

In the article on eigenvalue and eigenvectors, we describe a method to decompose an n × n square matrix A into

Image for post
Image for post

For example,

Image for post
Image for post

However, this is possible only if A is a square matrix and A has n linearly independent eigenvectors. Now, it is time to develop a solution for all matrices using SVD.

Singular vectors & singular values

The matrix AAᵀ and AᵀA are very special in linear algebra. Consider any m × n matrix A, we can multiply it with Aᵀ to form AAᵀ and AᵀA separately. These matrices are

  • symmetrical,
  • square,
  • at least positive semidefinite (eigenvalues are zero or positive),
  • both matrices have the same positive eigenvalues, and
  • both have the same rank r as A.

In addition, the covariance matrices that we often use in ML are in this form. Since they are symmetric, we can choose its eigenvectors to be orthonormal (perpendicular to each other with unit length) — this is a fundamental property for symmetric matrices.

Image for post
Image for post

Let’s introduce some terms that frequently used in SVD. We name the eigenvectors for AAᵀ as uᵢ and AᵀA as vᵢ here and call these sets of eigenvectors u and v the singular vectors of A. Both matrices have the same positive eigenvalues. The square roots of these eigenvalues are called singular values.

Not too many explanations so far but let’s put everything together first and the explanations will come next. We concatenate vectors uᵢ into U and vᵢ into V to form orthogonal matrices.

Image for post
Image for post

Since these vectors are orthonormal, it is easy to prove that U and V obey

Image for post
Image for post

SVD

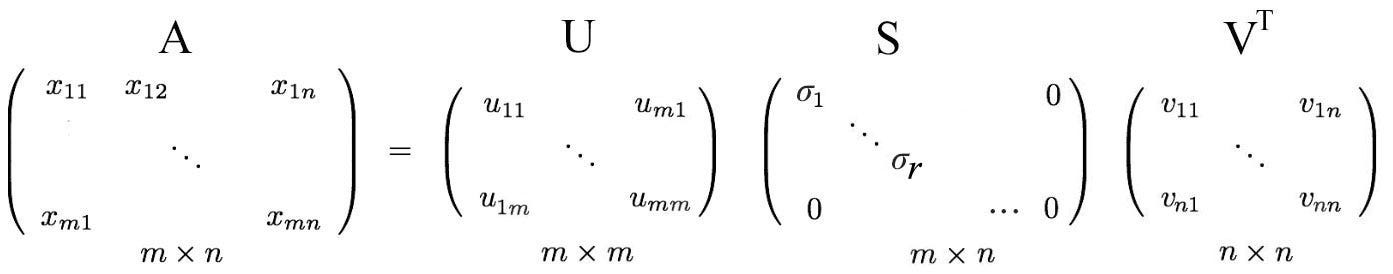

Let’s start with the hard part first. SVD states that any matrix A can be factorized as:

Image for post
Image for post

where U and V are orthogonal matrices with orthonormal eigenvectors chosen from AAᵀ and AᵀA respectively. S is a diagonal matrix with r elements equal to the root of the positive eigenvalues of AAᵀ or Aᵀ A (both matrics have the same positive eigenvalues anyway). The diagonal elements are composed of singular values.

Image for post
Image for post

i.e. an m× n matrix can be factorized as:

Image for post
Image for post
Image for post
Image for post

We can arrange eigenvectors in different orders to produce U and V. To standardize the solution, we order the eigenvectors such that vectors with higher eigenvalues come before those with smaller values.

Image for post
Image for post

Comparing to eigendecomposition, SVD works on non-square matrices. U and V are invertible for any matrix in SVD and they are orthonormal which we love it. Without proof here, we also tell you that singular values are more numerical stable than eigenvalues.

Example (Source of the example)

Before going too far, let’s demonstrate it with a simple example. This will make things very easy to understand.

Image for post
Image for post

We calculate:

Image for post
Image for post

These matrices are at least positive semidefinite (all eigenvalues are positive or zero). As shown, they share the same positive eigenvalues (25 and 9). The figure below also shows their corresponding eigenvectors.

Image for post
Image for post

The singular values are the square root of positive eigenvalues, i.e. 5 and 3. Therefore, the SVD composition is

Image for post
Image for post

Proof (optional)

To proof SVD, we want to solve U, S, and V with:

Image for post
Image for post

We have 3 unknowns. Hopefully, we can solve them with the 3 equations above. The transpose of A is

Image for post
Image for post

Knowing

Image for post
Image for post

We compute AᵀA,

Image for post
Image for post

The last equation is equilvant to the eigenvector definition for the matrix (AᵀA). We just put all eigenvectors in a matrix.

Image for post
Image for post

with VS² equals

Image for post
Image for post

V hold all the eigenvectors vᵢ of AᵀA and S hold the square roots of all eigenvalues of AᵀA. We can repeat the same process for AAᵀ and come back with a similar equation.

Image for post
Image for post

Now, we just solve U, V and S for

Image for post
Image for post

and prove the theorem.

Recap

The following is a recap of SVD.

Image for post
Image for post

where

Image for post
Image for post

Reformulate SVD

Since matrix V is orthogonal, VᵀV equals I. We can rewrite the SVD equation as:

Image for post
Image for post

This equation establishes an important relationship between uᵢ and vᵢ.

Recall

Image for post
Image for post

Apply AV = US,

Image for post
Image for post

This can be generalized as

Image for post
Image for post

Recall,

Image for post
Image for post

and

Image for post
Image for post

The SVD decomposition can be recognized as a series of outer products of uᵢ and vᵢ.

Image for post
Image for post

This formularization of SVD is the key to understand the components of A. It provides an important way to break down an m × n array of entangled data into r components. Since uᵢ and vᵢ are unit vectors, we can even ignore terms (σᵢuᵢvᵢᵀ) with very small singular value σᵢ. (We will come back to this later.)

Let’s first reuse the example before and show how it works.

Image for post
Image for post

The matrix A above can be decomposed as

Image for post
Image for post

Column space, row space, left nullspace and nullspace (Optional-for advanced users)

Next, we will take a look at what U & V composed of. Let’s say A is an m × n matrix of rank r. AᵀA will be an n× n symmetric matrix. All symmetric matrices can choose n orthonormal eigenvectors vⱼ. Because of Avᵢ = σᵢuᵢ and vⱼ are orthonormal eigenvectors of AᵀA, we can calculate the value of uᵢuⱼ as

Image for post
Image for post

It equals zero. i.e. uᵢ and uⱼ are orthogonal with each other. As shown previously, they are also eigenvectors of AAᵀ.

From Avᵢ = σuᵢ, we can recognize that uᵢ is a column vector of A.

Image for post
Image for post

Because A has a rank of r, we can choose these r uᵢ vectors to be orthonormal. So what are the remaining m - r orthogonal eigenvectors for AAᵀ? Since left nullspace of A is orthogonal to the column space, it is very natural to pick them as the remaining eigenvector. (The left nullsapce N(Aᵀ) is the space span by x in Aᵀx=0.) A similar argument will work for the eigenvectors for AᵀA. Therefore,

Image for post
Image for post

To get back to the former SVD equation from

Image for post
Image for post

We simply put back the eigenvectors in the left nullspace and nullspace.

Image for post
Image for post

Moore-Penrose Pseudoinverse

For a linear equation system, we can compute the inverse of a square matrix A to solve x.

Image for post
Image for post

But not all matrices are invertible. Also, in ML, it will be unlikely to find an exact solution with the presence of noise in data. Our objective is to find the model that best fit the data. To find the best-fit solution, we compute a pseudoinverse

Image for post
Image for post

which minimizes the least square error below.

Image for post
Image for post

And the solution for x can be estimated as,

Image for post
Image for post

In a linear regression problem, x is our linear model, A contains the training data and b contains the corresponding labels. We can solve x by

Image for post
Image for post
Image for post
Image for post

Here is an example.

Image for post
Image for post

Variance & covariance

In ML, we identify patterns and relationship. How do we identify the correlation of properties in data? Let’s start the discussion with an example. We sample the height and weight of 12 people and compute their means. We zero-center the original values by subtracting them with its mean. For example, Matrix A below holds the adjusted zero-centered height and weight.

Image for post
Image for post

As we plot the data points, we can recognize height and weight are positively related. But how can we quantify such a relationship?

Image for post
Image for post

First, how does a property vary? We probably learn the variance from high school. Let’s introduce its cousin. Sample variance is defined as :

Image for post
Image for post

Note, it is divided by n-1 instead of n in the variance. With a limited size of the samples, the sample mean is biased and correlated with the samples. The average square distance from this mean will be smaller than that from the general population. The sample covariance S², divided by n-1, compensates for the smaller value and can be proven to be an unbiased estimate for variance σ². (The proof is not very important so I will simply provide a link for the proof here.)

Covariance matrices

Variance measures how a variable varies between itself while covariance is between two variables (a and b).

Image for post
Image for post

We can hold all these possible combinations of covariance in a matrix called the covariance matrix Σ.

Image for post
Image for post

We can rewrite this in a simple matrix form.

Image for post
Image for post

The diagonal elements hold the variances of individual variables (like height) and the non-diagonal elements hold the covariance between two variables. Let’s compute the sample covariance now.

Image for post
Image for post
Image for post
Image for post

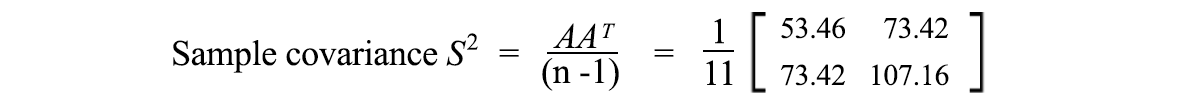

The positive sample covariance indicates weight and height are positively correlated. It will be negative if they are negatively correlated and zero if they are independent.

Image for post
Image for post

Covariance matrix & SVD

We can use SVD to decompose the sample covariance matrix. Since σ₂ is relatively small compared with σ₁, we can even ignore the σ₂ term. When we train an ML model, we can perform a linear regression on the weight and height to form a new property rather than treating them as two separated and correlated properties (where entangled data usually make model training harder).

Image for post
Image for post

u₁ has one significant importance. It is the principal component of S.

Image for post
Image for post

There are a few properties about a sample covariance matrix under the context of SVD:

  • The total variance of the data equals the trace of the sample covariance matrix S which equals the sum of squares of S’s singular values. Equipped with this, we can calculate the ratio of variance lost if we drop smaller σᵢ terms. This reflects the amount of information lost if we eliminate them.
Image for post
Image for post
  • The first eigenvector u₁ of S points to the most important direction of the data. In our example, it quantifies the typical ratio between weight and height.
Image for post
Image for post
Perpendicular least squares
  • The error, calculated as the sum of the perpendicular squared distance from the sample points to u₁, is the minimum when SVD is used.

Property

Covariance matrices are not only symmetric but they are also positive semidefinite. Because variance is positive or zero, uᵀVu below is always greater or equal zero. By the energy test, V is positive semidefinite.

Image for post
Image for post

Therefore,

Image for post
Image for post

Often, after some linear transformation A, we want to know the covariance of the transformed data. This can be calculated with the transformation matrix A and the covariance of the original data.

Image for post
Image for post

Correlation matrix

A correlation matrix is a scaled version of the covariance matrix. A correlation matrix standardizes (scale) the variables to have a standard deviation of 1.

Image for post
Image for post

Correlation matrix will be used if variables are in scales of very different magnitudes. Bad scaling may hurt ML algorithms like gradient descent.

Visualization

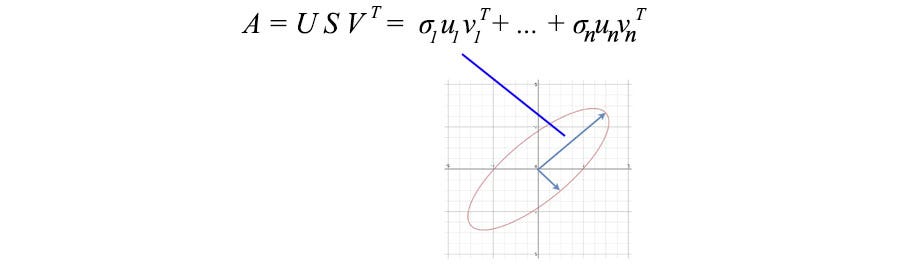

So far, we have a lot of equations. Let’s visualize what SVD does and develop the insight gradually. SVD factorizes a matrix A into USVᵀ. Applying A to a vector x (Ax) can be visualized as performing a rotation (Vᵀ), a scaling (S) and another rotation (U) on x.

Image for post
Image for post

As shown above, the eigenvector vᵢ of V is transformed into:

Image for post
Image for post

Or in the full matrix form

Image for post
Image for post
demonstrate for r = m < n

Insight of SVD

As described before, the SVD can be formulated as

Image for post
Image for post

Since uᵢ and vᵢ have unit length, the most dominant factor in determining the significance of each term is the singular value σᵢ. We purposely sort σᵢ in the descending order. If the eigenvalues become too small, we can ignore the remaining terms (+ σᵢuᵢvᵢᵀ + …).

Image for post
Image for post

This formularization has some interesting implications. For example, we have a matrix contains the return of stock yields traded by different investors.

Image for post
Image for post

As a fund manager, what information can we get out of it? Finding patterns and structures will be the first step. Maybe, we can identify the combination of stocks and investors that have the largest yields. SVD decompose an n × n matrix into r components with the singular value σᵢ demonstrating its significant. Consider this as a way to extract entangled and related properties into fewer principal directions with no correlations.

Image for post
Image for post

If data is highly correlated, we should expect many σᵢ values to be small and can be ignored.

Image for post
Image for post

In our previous example, weight and height are highly related. If we have a matrix containing the weight and height of 1000 people, the first component in the SVD decomposition will dominate. The u₁ vector indeed demonstrates the ratio between weight and height among these 1000 people as we discussed before.

Image for post
Image for post

Principal Component Analysis (PCA)

Technically, SVD extracts data in the directions with the highest variances respectively. PCA is a linear model in mapping m-dimensional input features to k-dimensional latent factors (k principal components). If we ignore the less significant terms, we remove the components that we care less but keep the principal directions with the highest variances (largest information).

Image for post
Image for post

Consider the 3-dimensional data points that displayed as blue dots below. It can be approximated by a plane easily.

Image for post
Image for post
Source

You may quickly realize that we can use SVD to find the matrix W. Consider the data points below that lie on a 2-D space.

Image for post
Image for post

SVD selects a projection that maximizes the variance of their output. Hence, PCA will pick the blue line over the green line if it has a higher variance.

Image for post
Image for post

As indicated below, we keep the eigenvectors that have the top kth highest singular value.

Image for post
Image for post

Interest rate

Let’s illustrate the concept deeper by retracing an example here with the interest rate data originated from the US Treasurer Department. The basis points for 9 different interest rates (from 3 months, 6 months, … to 20 years) over 6 consecutive business days are collected with A stored the difference from the previous date. A also has its elements subtracted by its mean over this period already. i.e. it is zero-centered (across its row).

Image for post
Image for post

The sample covariance matrix equals S = AAᵀ/(5–1).

Image for post
Image for post

Now we have the covariance matrix S that we want to factorize. The SVD decomposition is

Image for post
Image for post

From the SVD decomposition, we realize that we can focus on the first three principal components.

Image for post
Image for post

As shown, the first principal component is related to a weighted average of the daily change for all maturity lengths. The second principal component adjusts the daily change sensitive to the maturity length of the bond. (The third principal component is likely the curvature — a second-degree derivative.)

We understand the relationship between the interesting rate change and maturity well in our daily life. So the principal components reconfirm what we believe how interest rates behave. But when we are presented with unfamiliar raw data, PCA is very helpful to extract the principal components of your data to find the underneath information structure. This may answer some questions on how to find a needle in a haystack.

Tips

Scale features before performing SVD.

Image for post
Image for post

Say, we want to retain 99% variance, we can choose k such that

Image for post
Image for post
