Dual Gradient Descent is a popular method for optimizing an objective under a constraint. In reinforcement learning, it helps us to make better decisions.

The key idea is transforming the objective into a Lagrange dual function which can be optimized iteratively. The Lagrangian 𝓛 and the Lagrange dual function g is defined as:

where λ is a scalar which we call the Lagrangian multiplier.

The dual function g is a lower bound for the original optimization problem. Indeed, if the function f is a convex function, the strong duality will often hold which say the maximum value of g equals the minimum values of the optimization problem. Hence, if we find λ that maximize g, we solve the optimization problem.

So we start with a random guess of λ and use any optimization method to solve this unconstrained objective.

Next, we will apply gradient ascent to update λ in order to maximize g. The gradient of g is:


In step 1 below, we find the minimum x based on the current λ value, and then we take a gradient ascent step for g (step 2 and 3).

We alternate between minimizing the Lagrangian 𝓛 with respect to the primal variables (x), and incrementing the Lagrange multiplier λ by its gradient. By repeating the iteration, the solution will converge.


Let’s visualize how this algorithm works.

Modified from source

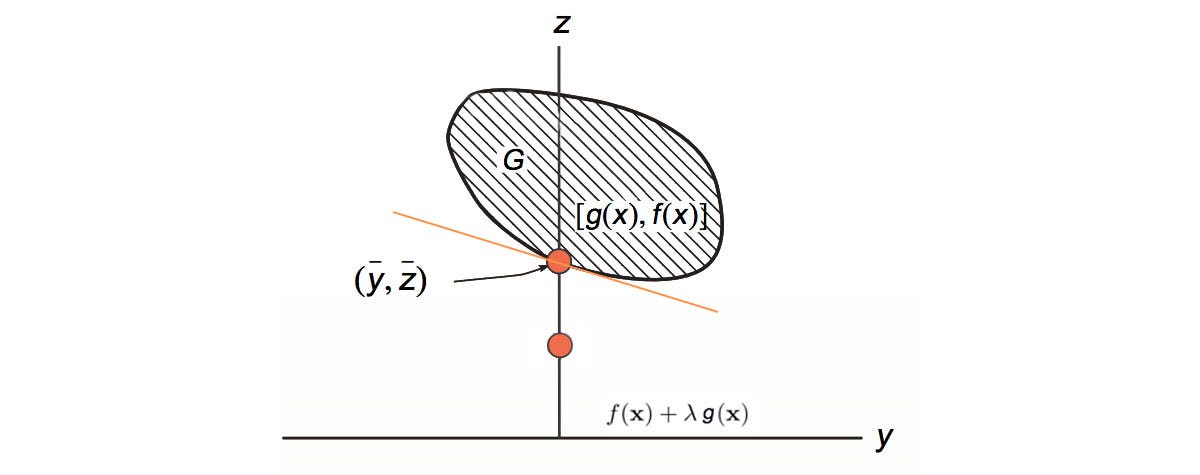

Let y=g(x) and z =f(x). y and z form a space G above and we plot z against y. Our solution is the orange dot above: the minimum f within the space G and g(x)=0. The orange line below is our Lagrangian. Its slope equals λ and it touches the boundary of G.

Modified from source

Then we use gradient ascent to adjust λ (the slope) for the maximum value f(x) that touches G with g(x)=0.

Modified from source

This is how the Dual Gradient Descent works. (Credit)


Let’s go through one example but we will solve it analytically this time.

Lagrange multiplier

So what is this Lagrange multiplier? We can visualize f with a contour plot with different values of d. g is the constraint function.


Geometrically, the optimal point lies where the gradient at f(x,y), the blue arrow, aligned with the gradient at g(x,y), the red arrow.

where λ is the Lagrange multiplier.


Dual Gradient Descent uses any optimization method to minimize the Lagrange with respect to current λ value. In trajectory optimization, we use iLQR for this optimization method. Then we apply gradient ascent to adjust λ. The optimal solution will be found by repeating the iterations.
